Brand Name : | Hengcheng |
Model Number : | HVM800 HVM1250 HVM1300 HVM1500 HVM1700 HVM1750 HVM1900 HVM2400 HVM2400 HVM2500 |
Certification : | ISO Patent Certificate High-Tech Product Certificate |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 5 sets/month |
Delivery Time : | 90 days |

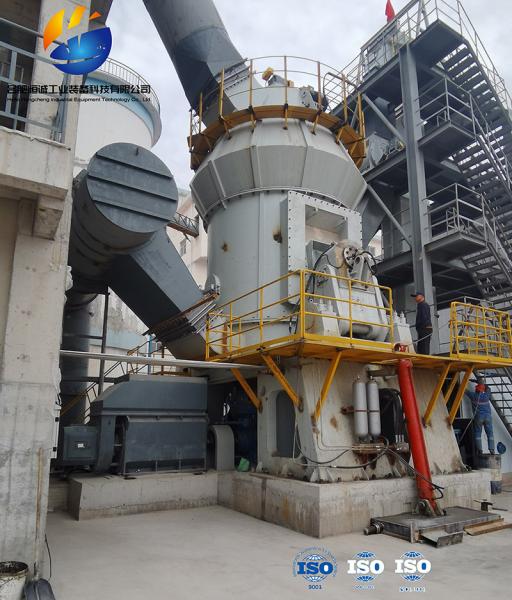

High Quality Calcite Vertical Grinding Machine Limestone Grinding Equipment
Description
1, Application scope of calcite vertical mill
New ultra-fine vertical grinding equipment can be widely used for
large-scale ultra-fine dry powder processing of non-metallic
minerals such as calcite, marble, limestone, heavy calcium, talc,
barite, dolomite, etc.
Specifications | HVM800 | HVM1250 | HVM1300 | HVM1500 | HVM1700 | HVM1750 | HVM1900 | HVM2400 | HVM2400 | HVM2500 |
Grinding table median diameter | 800 | 1250 | 1300 | 1500 | 1700 | 1750 | 1900 | 2400 | 2400 | 2500 |
Capacity(t/h) | 1-3 | 2-7 | 3-12 | 4-16 | 6-24 | 7-27 | 7-28 | 9-35 | 10-39 | 11-45 |
Materials Grain Size(mm) | 0-15 | 0-20 | 0-25 | 0-35 | 0-35 | 0-35 | 0-40 | 0-40 | 0-40 | 0-50 |
Materials Moisture(%) | <5 | |||||||||
Product Fineness(10-40um) | 97% | |||||||||
Product Moisture(%) | ≤1 | |||||||||
Main Motor Power(kw) | 55 | 132 | 180 | 250 | 355 | 400 | 450 | 560 | 630 | 710 |
Re:The data based on Mohs'hardness 3-4 material
The product fineness can reach 10 um(1250 mesh)
Working principle:
The electric motor drives the grinding disc to rotate through a reducer, and the material falls into the center of the grinding disc from the feeding port. At the same time, hot air enters the grinding chamber from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding disc and is crushed by the grinding roller when passing through the circular groove on the grinding disc. The crushed material is carried up by the high-speed airflow at the edge of the grinding disc, and large particles directly fall onto the grinding disc for re grinding. When the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls onto the grinding disc for re grinding, and qualified fine powder is discharged with the airflow, Collect in the powder collection device, which is the product. Materials containing moisture are dried during contact with hot gases to achieve the required product moisture.
Advantages of calcite vertical mill:
1. Efficient and energy-saving:
(1) High grinding efficiency and low energy consumption, compared
to ball mills, the energy consumption is 40% -50% lower;
(2) Large single machine production capacity, capable of utilizing
low valley electricity;
(3) Vertical grinding technology and equipment are vigorously
advocated new technologies for energy conservation and consumption
reduction, which are conducive to enhancing the competitive
strength of enterprises in the powder industry in this region and
even across the country;
2. Easy maintenance and low operating costs:
(1) The grinding roller can be turned out of the machine using a
hydraulic device, and the replacement of the roller sleeve lining
plate and the maintenance space of the mill are large, making the
maintenance operation very convenient;
(2) The grinding roller sleeve can be used upside down, extending
the service life of wear-resistant materials;
(3) Before starting the machine, there is no need to apply fabric
to the grinding disc, and the mill can be started without load,
eliminating the difficulty of starting the machine;
(4) Low wear, special materials are used for the grinding roller
and disc lining plate, resulting in a long service life;
(5) High degree of automation: The automatic control technology
adopts the Siemens series PLC from Germany, equipped with an
automatic control system, which can achieve remote control and easy
operation. The workshop can basically achieve unmanned operation,
saving operating costs;
3. Low comprehensive investment cost:
Integrating crushing, drying, grinding, and conveying, the process
flow is simple, the system equipment is few, the structural layout
is compact, and the floor area is only 50% of that of the ball
mill. It can be arranged outdoors, with low construction costs,
directly reducing the investment cost of the enterprise.
4. Stable product quality:
(1) The material stays in the grinder for a short time, making it
easy to detect the particle size distribution and composition of
the product, and ensuring stable product quality;
(2) The product has uniform particle morphology, narrow particle
size distribution, good flowability, and strong product
adaptability.
5. High reliability
(1) Adopting a grinding roller limit device to avoid severe
vibration caused by material breakage during the working time of
the mill;
(2) Adopting a new type of roller sealing device, the sealing is
more reliable, and there is no need for a sealing fan, further
reducing the oxygen content in the mill and achieving better
explosion suppression performance.
6. Environmental protection:
(1) The entire system of HVM vertical grinding machine has low
vibration and low noise;
(2) The system is sealed as a whole, operates under full negative
pressure, and there is no dust leakage, basically achieving a
dust-free workshop.
Hefei Hengcheng Industrial Equipment Technology Co., Ltd. was
established in 2008 and is located in the famous science and
education cities of Anhui and Hefei in China. It is a national
high-tech enterprise and technology oriented enterprise
specializing in powder industrial technology and equipment research
and development, manufacturing, sales, and service. The company has
passed the ISO9001 international quality system certification and
is committed to providing equipment manufacturing, complete
equipment sets, engineering design A complete set of solutions for
engineering general contracting, technical services, and consulting
in the field of powder engineering.
The company has a professional technical team composed of
high-quality talents such as experts, scholars, senior engineers,
and master's students who have won the National Science and
Technology Progress Award and participated in the formulation of
relevant industry standards. The team members have over ten years
of experience in industry research and design institutes, and have
rich engineering practical experience and theoretical foundation.
The company has established technical cooperation and exchange
relationships with multiple key universities at the same time,
absorbing cutting-edge technologies in the powder industry at home
and abroad, closely following the development trend of the powder
industry, and providing customers with advanced and reliable powder
equipment and various professional technical services.
In response to the two important links of powder preparation and
powder transportation in the powder industry, the company has
conducted in-depth research on the physical and chemical
characteristics of various types of powder materials in different
industries and fields through years of technological accumulation
and extensive engineering practice. Based on this, the company has
developed powder processing technology and complete equipment with
strong targeting, safety, reliability, high efficiency, and energy
conservation. The variety of raw materials processed and applied in
many industries are diverse, The wide range of fields involved.
Since its establishment, the company has always adhered to the
development concept of "based on industry and equipped with the
world", and is committed to providing a complete set of system
solutions in the powder industry field, covering powder industry
preparation, engineering design, engineering general contracting,
and technical services and consulting for domestic and foreign
customers. The core technology products of the company are
currently widely used in powder processing fields in industries
such as building materials, metallurgy, chemical engineering,
heating, energy, electricity, lime kilns, pellets, mineral
processing (including metal and non-metallic minerals), port
warehousing and logistics, and are exported to various parts of the
world.
![]() |
