China Powder Pneumatic Conveying System Manufacturers Long Distance Large Conveying Capacity Bin Pump

Product Introduction:

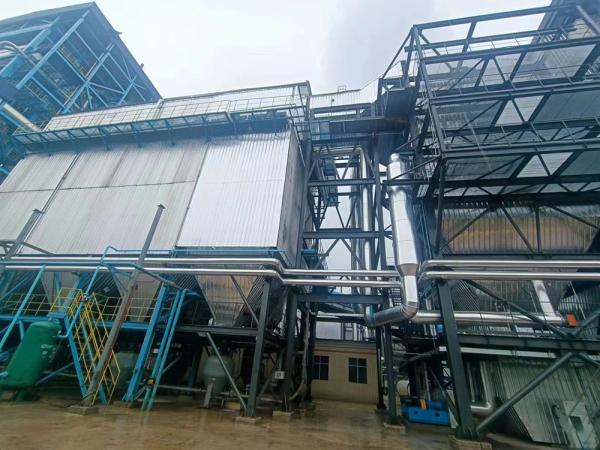

Working principle of pneumatic ash conveying system with silo pump
The pneumatic ash conveying system is a widely used pneumatic conveying engineering system. It is a commonly used conveying system in the power plant industry, metallurgical industry, and other industries.

Feeding stage: The feeding valve is in an open state, and the primary inlet and outlet valves are closed. The upper part of the bin pump is connected to the ash hopper, and the fly ash captured by the dust collector freely falls into the bin pump with the help of gravity. When the ash level reaches the upper limit of the ash level, the material level meter sends a full signal, or when the system feeding setting time is set, the feeding valve is closed, and the feeding stage ends.

Fluidization and pressurization stage: After the feeding stage is completed, the system automatically opens the inlet valve once. The processed compressed air enters the fluidization cone at the bottom of the bin pump through the flow control valve, and the air passing through the fluidization cone evenly surrounds each fly ash particle. At the same time, the pressure inside the bin pump increases. When the pressure reaches the point where the pressure sensor sends a signal, the system automatically opens the discharge valve, and the pressurized fluidization stage ends.

Delivery stage:
The discharge valve and secondary inlet valve are opened. At this time, the bin pump continues to intake air while feeding the gas-ash mixture into the ash conveying pipe through the discharge valve. The fly ash is always in a state of fluidization and entering the conveying pipeline for transportation. After the fly ash in the bin pump is transported, the pipeline pressure drops, and the pressure inside the bin pump decreases. When the pressure inside the bin pump drops to the point where the pressure sensor sends a signal, the conveying stage ends, and the inlet and outlet valves remain open, Enter the blowing phase.

Positive pressure dense phase intermittent pneumatic conveying system
In terms of positive pressure dense phase intermittent pneumatic conveying, the company has always been committed to theoretical research and engineering practice experience summary of pneumatic conveying systems, focusing on breaking through the key technologies of long-distance, high production, low energy consumption, and low wear in the pneumatic conveying process. The core product is the PCD type positive pressure dense phase pneumatic conveying silo pump, while providing systematic, standardized, and refined engineering design and technical services. To meet the needs of different customers, we create the best design plan based on parameters such as material properties, conveying distance, conveying capacity, receiving warehouse capacity, dust removal capacity, and geographical conditions. Each equipment is manufactured through qualified inspection, and each pneumatic conveying system has its own design features, allowing customers to truly experience the intelligent management and economic benefits brought by advanced technology products.

Advantages of PCD type positive pressure dense phase pneumatic conveying silo pump:
1. No pipe blockage
The pneumatic conveying bin pump can basically adapt to the pneumatic conveying of any powder material, and the system installed with the pneumatic conveying bin pump will not cause pipe blockage, with very high reliability. Even if you want to artificially block the pipes, it's a very difficult thing
2. Long distance pneumatic conveying
The warehouse pump can achieve ideal long-distance pneumatic conveying. Currently, in domestic cases, only the dense phase pneumatic conveying system operates stably with a conveying distance exceeding 2000 meters.
3. Low energy consumption
The conveying process of the warehouse pump only consists of three processes: feeding and pressurized conveying, omitting the step of pipeline blowing. The warehouse pump can achieve full pipe dense phase pneumatic conveying with low flow rate, and can stop conveying when there is no ash, which will not affect the next conveying process and will not block the pipeline
4. Low wear and tear
Because the flow rate of the warehouse pump is low, wear is actually proportional to the flow rate. The pneumatic conveying flow rate of the warehouse pump generally does not exceed 5m/s. Many customers who are not familiar with it generally have high conveying pressure, which increases wear. In fact, the pressure of pneumatic conveying is not related to wear. The higher the conveying speed of the material, the more severe the wear will be.
5. High efficiency
Environmental protection is also used for dilute phase pneumatic conveying, but we have to admit that for the same conveying project, the conveying capacity of the warehouse pump can be more than twice that of the dilute phase pneumatic conveying
6. Specific gravity
The concentrated phase pneumatic conveying of the combined pump has strong adaptability and can transport almost any powder.
7. Simple configuration
The configuration of the warehouse pump is very simple, and modular components can save a lot of costs.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Hefei Hengcheng Industrial Equipment Technology Co., Ltd. (hereinafter referred to as Hengcheng) was established in 2008. The company is located in Hefei, Anhui, a famous science and education city in China. It is a national-level high-tech enterprise and technology-based enterprise specializing in powder industry technology and equipment R&D, manufacturing, sales and service. The company has passed the ISO9001 international quality system certification.

Our company's main products : Vertical Coal Mill,Limestone Vertical Mill,Vertical Raw Mill,Slag Grinding Mill,Gypsum Grinding Mill,Calcite Mill,VRM Cement Mill,Bentonite Grinding Mill,Dolomite Grinding Mill,Bauxite Grinding Mill and pneumatic conveying system equipment. Among them, the grinding system equipment includes HVM vertical mill, rotary air lock feeder, and pressure-resistant sealed metering feeder. The products of the pneumatic conveying system equipment include PCD type positive pressure dense phase pneumatic conveying bin-type pump, PJP type positive pressure dilute phase pneumatic conveying jet pump, and HL type high-efficiency pneumatic fluidized blanking and blockage removal device.

Since its establishment, the company has always adhered to the development concept of "Based on Industry and Equipped in the World", and is committed to providing domestic and foreign customers with a complete set of system solutions in the powder industry field covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting. Program. The company's core technology products have been widely used in the powder processing fields of building materials, metallurgy, chemical industry, heat, energy, electric power, lime kiln, pellets, mineral processing (including metal and non-metallic minerals), port warehousing and logistics and other industries.

The company has a professional technical team composed of high-quality talents such as experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. Practical experience, has rich engineering practice experience and theoretical basis. At the same time, the company has established technical cooperation and exchange relations with a number of key universities, absorbed the cutting-edge technologies in the powder industry at home and abroad, and closely followed the development trend of the powder industry, so as to provide customers with advanced and reliable powder equipment and various professional services. Technical Services.

Aiming at the two important links of powder preparation and powder transportation in the powder industry, the company has deeply studied the physical and chemical properties of various types of powder materials in different industries and fields after years of technical accumulation and a large number of engineering practices. On this basis, we have developed powder processing technology and complete sets of equipment that are highly targeted, safe, reliable, efficient and energy-saving.

We have a professional technical team composed of experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. All team members have more than ten years of experience in large state-owned design institutes in the industry Experience, has a wealth of engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involving grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.

We have undertaken a large number of domestic and foreign (currently the company exported to Indonesia, Vietnam, the Philippines, Pakistan, Egypt, Yemen, Saudi Arabia, Congo and other countries and regions in the world) the metallurgical industry limestone powder milling and pneumatic powder conveying projects and coal powder preparation And pneumatic conveying project, lime kiln industry pulverizing and pneumatic powder conveying project, coal powder preparation and pneumatic conveying project, cement industry grinding system and conveying system renovation project and other engineering design projects, the design of the engineering project equipment selection is reasonable, The design scheme is scientific and reasonable, concise, practical, and cost-effective, all of which have reached or exceeded the expected indicators, and have been highly recognized and praised by users. The project has won the company's reputation in the industry.

Our goal: to sell the best machines at the best prices with industry-leading customer service. We personally know each of our customers, always adhering to the development concept of "Focus On Powder,Equipping The World", we are committed to providing powder industry services covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting for customers around the world. A complete set of system solutions in the field.

For more detailed information on our Powder Industry Technology and Equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
