Coal Vertical Mill 40 T/H Coal Mill / Energy Saving Vertical Coal Mill / High Production Low Consumption

Product Descripition:

NO.1 Coal vertical mill can be applied in industries such as cement, electricity, steel, metallurgy, etc. Due to its special process and structure, the coal vertical mill produces less dust and low noise during the production process, resulting in high efficiency and excellent combustion performance of the produced coal powder. The coal vertical mill produced by our company has a simple process, compact equipment, and a coal powder fineness of up to 80% μ MR 3%, with stable fineness and uniform particle size.

NO.2 Structural principle:
The coal vertical mill is driven by an electric motor and drives the grinding disc of the coal mill to rotate through a planetary reducer. The 2-4 grinding rollers on the grinding disc rotate under the driving force of the grinding disc. The raw coal entering through the coal chute is distributed on the grinding disc. Due to the hydraulic loading force, there is compression between the grinding rollers and the grinding disc, causing large particles of raw coal to be crushed. The sliding friction force generated by the relative motion between the grinding roller and the grinding disc is used to achieve the crushing of small coal particles; During the grinding of raw coal in the mill, hot air (usually below 300 ℃) is introduced into the vertical mill to dry the moisture of the raw coal and meet the requirements for finished coal powder; The ground coal powder is transported by primary air into the separator for separation. The qualified coal powder is separated and transported to the coal powder bin, while the unqualified coarse coal powder is returned to the mill for re grinding.

NO.3 Technical advantages:
High efficiency and large production capacity
Higher work efficiency, compared with old vertical mills of the same model, the output has increased by 20-50%, and the operating power consumption of the coal mill can be greatly reduced;
High quality coal powder
It adopts advanced dynamic and static combination separators, which have high classification efficiency and large adjustment space. The fineness of selected powder can reach 0.08 mm, and the sieve residue is less than 8%, which can meet the fineness requirements of most low-quality coal or anthracite powder grinding in cement production lines.
High system security
Coal vertical mill
By adopting explosion-proof measures such as temperature detection devices and online gas analyzers, the safe operation of the equipment is effectively ensured.
Complies with environmental standards
Through a unique sealing structure design, the entire system is in a negative pressure state, with no dust overflow and low noise during the production process. The coal powder is collected using a dedicated gas box pulse dust collector for coal grinding, and the dust emission concentration meets national standards.

Parameter Table of Coal Vertical Mill

NO.4 Engineering Case:

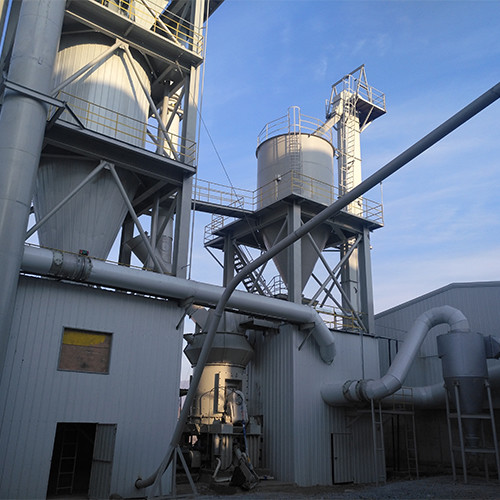

HVM1300M vertical mill coal powder preparation system process, electrical automation design, and equipment manufacturing and supply

Hefei Hengcheng Industrial Equipment Technology Co., Ltd. (hereinafter referred to as Hengcheng) was established in 2008. The company is located in Hefei, Anhui, a famous science and education city in China. It is a national-level high-tech enterprise and technology-based enterprise specializing in powder industry technology and equipment R&D, manufacturing, sales and service. The company has passed the ISO9001 international quality system certification.

Our company's main products : Vertical Coal Mill,Limestone Vertical Mill,Vertical Raw Mill,Slag Grinding Mill,Gypsum Grinding Mill,Calcite Mill,VRM Cement Mill,Bentonite Grinding Mill,Dolomite Grinding Mill,Bauxite Grinding Mill and pneumatic conveying system equipment. Among them, the grinding system equipment includes HVM vertical mill, rotary air lock feeder, and pressure-resistant sealed metering feeder. The products of the pneumatic conveying system equipment include PCD type positive pressure dense phase pneumatic conveying bin-type pump, PJP type positive pressure dilute phase pneumatic conveying jet pump, and HL type high-efficiency pneumatic fluidized blanking and blockage removal device.

Since its establishment, the company has always adhered to the development concept of "Based on Industry and Equipped in the World", and is committed to providing domestic and foreign customers with a complete set of system solutions in the powder industry field covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting. Program. The company's core technology products have been widely used in the powder processing fields of building materials, metallurgy, chemical industry, heat, energy, electric power, lime kiln, pellets, mineral processing (including metal and non-metallic minerals), port warehousing and logistics and other industries.

The company has a professional technical team composed of high-quality talents such as experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. Practical experience, has rich engineering practice experience and theoretical basis. At the same time, the company has established technical cooperation and exchange relations with a number of key universities, absorbed the cutting-edge technologies in the powder industry at home and abroad, and closely followed the development trend of the powder industry, so as to provide customers with advanced and reliable powder equipment and various professional services. Technical Services.

Aiming at the two important links of powder preparation and powder transportation in the powder industry, the company has deeply studied the physical and chemical properties of various types of powder materials in different industries and fields after years of technical accumulation and a large number of engineering practices. On this basis, we have developed powder processing technology and complete sets of equipment that are highly targeted, safe, reliable, efficient and energy-saving.

We have a professional technical team composed of experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. All team members have more than ten years of experience in large state-owned design institutes in the industry Experience, has a wealth of engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involving grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.

We have undertaken a large number of domestic and foreign (currently the company exported to Indonesia, Vietnam, the Philippines, Pakistan, Egypt, Yemen, Saudi Arabia, Congo and other countries and regions in the world) the metallurgical industry limestone powder milling and pneumatic powder conveying projects and coal powder preparation And pneumatic conveying project, lime kiln industry pulverizing and pneumatic powder conveying project, coal powder preparation and pneumatic conveying project, cement industry grinding system and conveying system renovation project and other engineering design projects, the design of the engineering project equipment selection is reasonable, The design scheme is scientific and reasonable, concise, practical, and cost-effective, all of which have reached or exceeded the expected indicators, and have been highly recognized and praised by users. The project has won the company's reputation in the industry.

Our goal: to sell the best machines at the best prices with industry-leading customer service. We personally know each of our customers, always adhering to the development concept of "Focus On Powder,Equipping The World", we are committed to providing powder industry services covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting for customers around the world. A complete set of system solutions in the field.

For more detailed information on our Powder Industry Technology and Equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
