    Cement Grinding Slag Vertical Roller Mill AC Motor Type

    Ask Lasest Price
    Brand Name : Hengcheng
    Model Number : HVM2500 HVM2800 HVM3400 HVM3700 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
    Certification : ISO Patent Certificate High-Tech Product Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 sets/month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

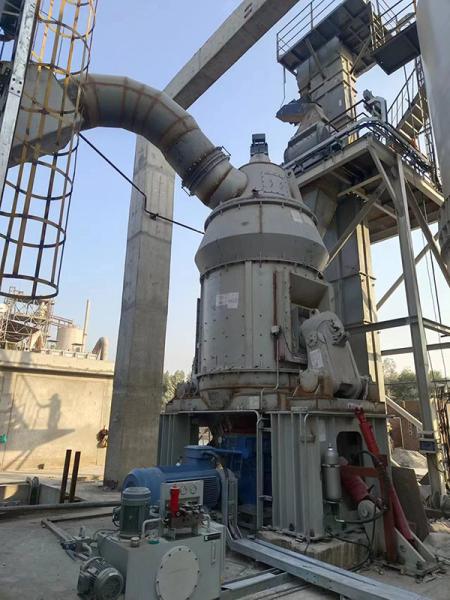

    Cement Grinding Slag Vertical Roller Mill AC Motor Type

    Slag Vertical Roller Mill, Cement Grinding Mills Price, Vertical Roller Mill For Sale


    Description


    When the molten slag of blast furnace ironmaking is quenched, the glassy substance formed when it is too late to crystallize is slag. After grinding, slag is the active mixture of cement.

    Hefei Hengcheng slag vertical mill can integrate grinding, drying, powder selection, transportation and collection. Its overall structure is reasonable, its technology is professional, its control is simple, it is easy to operate, its operation is stable and reliable, its maintenance is convenient, and its main technical and economic indicators reach the professional level.

    Materials that can be processed by HVM vertical mill: ferrite, slag, slag, cement, diamond, iron ore, chrome ore, manganese ore, gold ore, copper ore, aluminum ore, lead-zinc ore, tantalum niobium ore, polymetallic ore, nickel ore, bauxite, silicon carbide, titanium dioxide, talc, bentonite, calcite, kaolin, graphite, mica, wollastonite, feldspar, dolomite, pyrophyllite, quartz sand, fluorite, limestone, organic silicon, limestone Shale, volcanic ash, coal, etc.


    【Working Principle】: The motor drives the grinding plate to rotate through the reducer, the material falls in the center of the grinding plate from the feed inlet, and the hot air enters the grinding plate from the air inlet. Under the action of centrifugal force, the material moves towards the edge of the grinding plate and is crushed by the grinding roller when passing through the circular groove on the grinding plate. The crushed material is carried up at the edge of the grinding plate by the high speed air flow at the wind ring, and the large particles directly fall on the grinding plate for re-grinding. When the material in the air flow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls on the grinding plate for re-grinding, and the qualified fine powder comes out with the air flow, The product is collected in the powder collecting device. The material containing moisture is dried during the contact with hot gas to reach the required product moisture.


    Technical Data

    Model

    HVM2500

    HVM2800

    HVM3400

    HVM3700

    HVM4200

    HVM4500

    HVM4800

    HVM5100

    HVM5600

    Grinding Table Median Diameter(mm)

    2500

    2800

    3400

    3700

    4200

    4500

    4800

    5100

    5600

    Capacity(t/h)

    23-26

    50-60

    70-83

    90-110

    110-140

    130-150

    150-180

    180-200

    200-220

    Raw Material Moisture

    <15%

    Product Specific Surface Area

    ≥420㎡/kg

    Product Moistrue

    ≤1%

    Main Motor Power(kW)

    900

    1800

    2500

    3350

    3800

    4500

    5300

    6150

    6450/6700

    Illustrate

    Re:Mining slag bond index≤25kWh/t,Steel slag bond index≤30kWh/t,The output will decrease by 30%-40% when grinding steel slag micro power


    Product Advantages

    1. The ore powder production line can realize rapid cost recovery
    2. Significant energy-saving effect
    3. The unit coal consumption is low and the cost is reduced
    4. The quality of slag vertical mill is stable and reliable
    5. Low noise, low dust concentration and significant environmental protection effect

    The slag vertical mill adopts advanced technology, operates stably, and all environmental indicators meet the requirements.
