Long Lasting Pneumatic Conveying System For Powder Positive Pressure Dilute Phase Jet Pump

Description

The PJP type positive pressure dilute phase pneumatic conveying jet pump is a low-pressure, dilute phase, and continuous pneumatic conveying equipment suitable for situations where the conveying volume is not large and the conveying distance is medium. It can be widely used in industries such as building materials, chemicals, electricity, grain, metallurgy, casting, etc. The conveying materials include cement, raw materials, fly ash, hydrated lime, slag powder, steel slag powder, coal powder, aluminum oxide powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.

Working Principle
The PJP jet pump pneumatic conveying system consists of a PJP jet pump, a pneumatic butterfly valve, a pump top compartment, a manual spiral gate, and a compressed air supply device. The main source of compressed air is the Roots blower. Powder and granular materials enter the PJP jet pump through manual spiral gates, pump top bins, and pneumatic butterfly valves. When compressed air for transportation passes through the nozzle inside the PJP type jet pump box, the high-speed airflow generated creates a negative pressure state inside the PJP type jet pump box. The materials in the top compartment of the pump are easily mixed with the high-speed airflow. Then, when the material gas mixture passes through the expansion pipe of the PJP type jet device, the kinetic energy of the high-speed airflow is converted into static pressure energy, thereby conveying powder and granular materials to the terminal through the conveying pipeline. The manual spiral gate of the PJP jet pump is used for debugging and maintenance, and the pneumatic butterfly valve is used for automatically closing when the transportation of powder and granular materials is suspended or the system pressure is abnormal.

When the PJP type positive pressure dilute phase pneumatic conveying jet pump is installed at the bottom of the silo (warehouse) to transport materials using the pressure of the materials in the silo (warehouse), changes in the height of the materials in the silo (warehouse) will cause corresponding changes in the material conveying speed. Therefore, the conveying energy of the materials depends on the height of the materials in the silo (warehouse).

When the PJP type positive pressure dilute phase pneumatic conveying jet pump is equipped with a locking device, the conveying capacity of the material depends on the locking capacity of the locking device.

Based on extensive engineering practice experience, most dilute phase continuous pneumatic conveying processes are as follows:

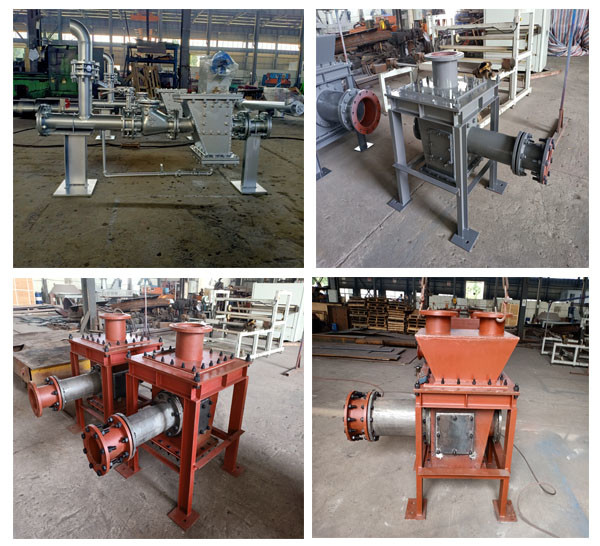

PJP Type Positive Pressure Dilute Phase Pneumatic Conveying Jet Pump

Characteristics and advantages

In terms of positive pressure dilute phase continuous pneumatic conveying systems, the company has always been committed to theoretical research and summary of engineering practical experience in pneumatic conveying systems, with a focus on breaking through key technologies such as continuity, wear, sealing, and reliability in the process of positive pressure continuous pneumatic conveying. The core product is the PJP type positive pressure dilute phase pneumatic conveying jet pump, while providing systematic, standardized, and refined engineering design and technical services.

PJP type positive pressure dilute phase pneumatic conveying jet pump is a pneumatic conveying device with automatic control, which has a compact structure, reliable performance, simple maintenance, long service life, and low investment cost. The moving parts are only materials and air. When connected to the dust removal device, its fully enclosed system design can provide a completely dust-free working environment.
