Energy Efficient Vertical Roller Mill For Limestone Slag Grinding Mill

Description

With the further expansion of industrial production scale such as iron and steel and metallurgy, slag, blast furnace slag, steel slag, copper slag, manganese slag, phosphate slag, fly ash, coal gangue, quicklime slag, vanadium-titanium slag, lead-zinc slag, etc. The discharge of waste increases year by year. In order to improve the secondary recycling value of industrial solid waste and help turn solid waste into treasure, Hefei Hengcheng Technology has devoted itself to research and carefully developed HVM series vertical mills for industrial solid waste special mill equipment. , with the advantages of energy saving and noise reduction, production and efficiency improvement, and tailor-made selection schemes, it helps industrial solid waste to be transformed into a gorgeous, and expands the value of recycling.

【Use Of Slag Powder】
80% blast furnace slag is washed into water-quenched slag, and the slag fine powder processed by the slag vertical mill is mostly used as the raw material of cement mixture and clinker-free cement, and a small part is used to produce slag bricks, tiles, etc. Slag can also be used as road slag, railway slag and concrete aggregate, and a small amount is used to produce slag wool, expanded slag beads, etc.

【Working Principle】
The motor drives the grinding disc to rotate through the reducer, the material falls into the center of the grinding disc from the feed inlet, and the hot air enters the mill from the air inlet. Under the action of centrifugal force, the material moves to the edge of the grinding disc, and is crushed by the grinding roller when it passes through the annular groove on the grinding disc. Re-grinding, when the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls on the grinding disc for re-grinding, and the qualified fine powder is milled together with the airflow and collected in the powder collecting device, which is product. Moisture-containing materials are dried during contact with hot gas to achieve the required product moisture.

Technical Data

【Product Advantages】

Low Investment Cost

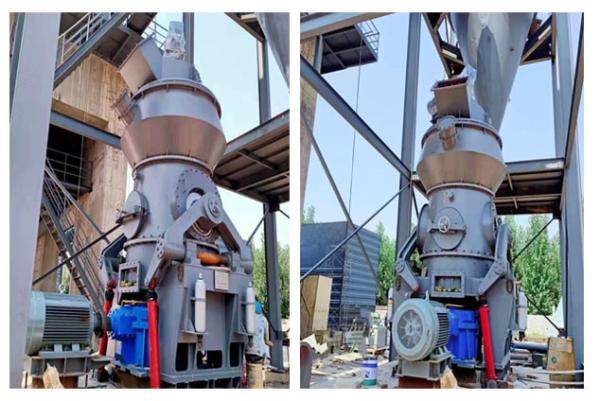

HVM slag vertical mill has the advantages of crushing, drying, grinding, powder separation and conveying. The comprehensive investment cost is low, the floor area is small, which is 50% of the ball mill, and it can be arranged in the open air, which saves the construction cost.

Intelligent Control
The HVM slag vertical mill production line is equipped with a PLC automatic control system, which can efficiently realize remote control, easy to operate, and has a high degree of intelligence, which greatly reduces labor costs.

Strong Drying Ability
The mill can be directly ventilated with hot air, and the moisture content of the material is as high as 15%. There is no need to configure a dryer, which saves investment costs and energy consumption costs, and can meet the production needs of drying and grinding materials with different humidity.

Reliable Operation
The HVM slag vertical mill production line adopts the grinding roller limiting device, which can avoid the vibration caused by the material cut off, and the new grinding roller sealing device has more reliable sealing, no need to seal the fan, and better explosion suppression performance.

Energy Saving
In line with the national environmental protection and energy saving requirements, the system is integrally sealed, fully negative pressure operation, no dust spillage, clean operating environment and reduced consumption, which is conducive to enhancing the market competitiveness of enterprises.

Hefei Hengcheng Industrial Equipment Technology Co., Ltd. (hereinafter referred to as Hengcheng) was established in 2008. The company is located in Hefei, Anhui, a famous science and education city in China. It is a national-level high-tech enterprise and technology-based enterprise specializing in powder industry technology and equipment R&D, manufacturing, sales and service. The company has passed the ISO9001 international quality system certification.

Our company's main products : Vertical Coal Mill,Limestone Vertical Mill,Vertical Raw Mill,Slag Grinding Mill,Gypsum Grinding Mill,Calcite Mill,VRM Cement Mill,Bentonite Grinding Mill,Dolomite Grinding Mill,Bauxite Grinding Mill and pneumatic conveying system equipment. Among them, the grinding system equipment includes HVM vertical mill, rotary air lock feeder, and pressure-resistant sealed metering feeder. The products of the pneumatic conveying system equipment include PCD type positive pressure dense phase pneumatic conveying bin-type pump, PJP type positive pressure dilute phase pneumatic conveying jet pump, and HL type high-efficiency pneumatic fluidized blanking and blockage removal device.

Since its establishment, the company has always adhered to the development concept of "Based on Industry and Equipped in the World", and is committed to providing domestic and foreign customers with a complete set of system solutions in the powder industry field covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting. Program. The company's core technology products have been widely used in the powder processing fields of building materials, metallurgy, chemical industry, heat, energy, electric power, lime kiln, pellets, mineral processing (including metal and non-metallic minerals), port warehousing and logistics and other industries.

The company has a professional technical team composed of high-quality talents such as experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. Practical experience, has rich engineering practice experience and theoretical basis. At the same time, the company has established technical cooperation and exchange relations with a number of key universities, absorbed the cutting-edge technologies in the powder industry at home and abroad, and closely followed the development trend of the powder industry, so as to provide customers with advanced and reliable powder equipment and various professional services. Technical Services.

Aiming at the two important links of powder preparation and powder transportation in the powder industry, the company has deeply studied the physical and chemical properties of various types of powder materials in different industries and fields after years of technical accumulation and a large number of engineering practices. On this basis, we have developed powder processing technology and complete sets of equipment that are highly targeted, safe, reliable, efficient and energy-saving.

We have a professional technical team composed of experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. All team members have more than ten years of experience in large state-owned design institutes in the industry Experience, has a wealth of engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involving grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.

We have undertaken a large number of domestic and foreign (currently the company exported to Indonesia, Vietnam, the Philippines, Pakistan, Egypt, Yemen, Saudi Arabia, Congo and other countries and regions in the world) the metallurgical industry limestone powder milling and pneumatic powder conveying projects and coal powder preparation And pneumatic conveying project, lime kiln industry pulverizing and pneumatic powder conveying project, coal powder preparation and pneumatic conveying project, cement industry grinding system and conveying system renovation project and other engineering design projects, the design of the engineering project equipment selection is reasonable, The design scheme is scientific and reasonable, concise, practical, and cost-effective, all of which have reached or exceeded the expected indicators, and have been highly recognized and praised by users. The project has won the company's reputation in the industry.

Our goal: to sell the best machines at the best prices with industry-leading customer service. We personally know each of our customers, always adhering to the development concept of "Focus On Powder,Equipping The World", we are committed to providing powder industry services covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting for customers around the world. A complete set of system solutions in the field.

For more detailed information on our Powder Industry Technology and Equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
