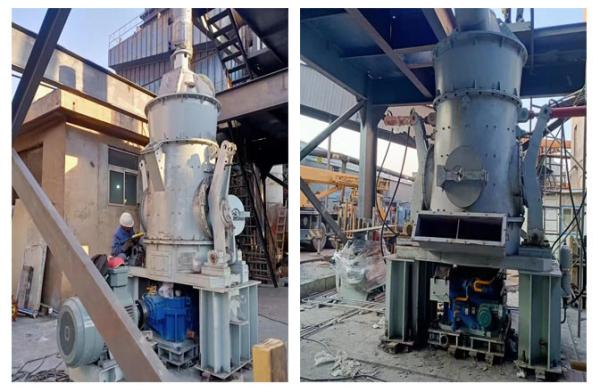

Energy-saving Consumption-reducing Vertical Roller Raw Mill In Cement Plant

【Application Materials】
Vertical mill is a kind of high-efficiency grinding introduced by the country's continuous increase in R&D investment in machinery manufacturing industry, changes in industrial policies and expansion of production scale in recent years. equipment.

And gradually accepted by the domestic cement, electric power, chemical industry, become the industry's more advanced grinding equipment. It integrates crushing, drying, grinding, grading and conveying, and has high production efficiency. It can grind block, granular and powdery raw materials into required powdery materials. Widely used in cement, electric power, metallurgy, chemical industry, non-metallic minerals and other industries.

【Technical Advantages】

1. The vertical mill adopts material layer rolling, friction and impact as the crushing mechanism, which has the advantages of high efficiency, large energy saving (20-30% energy saving compared with ball mill), low noise and small footprint.

2. The pressure adjustment method of the grinding roller is compressed by the air pressure of the flexible air spring, which can shrink freely, has no difference in rebound time, the pressing force is uniform and durable, and the production capacity is obviously improved; load start.

3. It integrates the functions of crushing, grinding, drying and grading, and has a wide range of applications. A single mill can be used for grinding of various materials.

4. In order to prevent the material from being too slippery during the grinding operation, the grinding machine is equipped with a mixing and spraying device, which is convenient for the establishment of the grinding layer of the material bed and improves the output.

5. By turning the boom arm of the oil cylinder, the grinding roller assembly is turned out to the outside of the mill for easy maintenance; the grinding roller sleeve and the grinding roller assembly become a split tapered sleeve tightening structure, which greatly improves the maintenance convenience and operation economy.

6. The control system can implement local and remote automation to realize unmanned operation

Specifications And Technical Parameters Of HVM Raw Vertical Mill

【An Introduction】
HVM vertical mill can produce both coarse powder and ultra-fine powder, and can produce coarse powder from 2 to 5mm for materials with different product fineness requirements (such as grinding shale, raw material for brick making in new wall material industry, sand making in construction industry) etc.) to 15 micron ultra-fine powder with a pass rate of 97% (such as heavy calcium powder in the paper industry, activated carbon ultra-fine powder in the chemical industry), the product fineness adjustment is highly arbitrary, and the adaptability is wide.

【Solution】
For the production of coarse powder, the type selection of vertical mill needs to adopt the structure of the powder separator with low resistance and anti-wear. At the same time, due to the large number of large particles, necessary anti-wear treatment and powder separator structure design are required to achieve reasonable powder selection output and energy consumption;
For the production of ultra-fine powder, the vertical mill should focus on the design and optimization of the powder separator. Due to the large resistance of the powder selection at this time, it is necessary to strictly control the fineness, and to prevent the large particles from running thick, excessive blade wear and damage. Problems such as abnormal vibration caused by large internal resistance of the mill. Therefore, for materials with different product fineness requirements, it is necessary to calculate and analyze the smoothness of materials and gases in the vertical mill, especially the part of the powder separator, according to the characteristics of the material, so as to determine a reasonable structure of the powder separator (such as the rotor form, the number and angle of blades, the number and angle of stationary blades), and at the same time, necessary auxiliary means should be taken to control (such as using a sealed fan for gas sealing to effectively control the running of large particles).

Hefei Hengcheng Industrial Equipment Technology Co., Ltd. (hereinafter referred to as Hengcheng) was established in 2008. The company is located in Hefei, Anhui, a famous science and education city in China. It is a national-level high-tech enterprise and technology-based enterprise specializing in powder industry technology and equipment R&D, manufacturing, sales and service. The company has passed the ISO9001 international quality system certification.

Our company's main products : Vertical Coal Mill,Limestone Vertical Mill,Vertical Raw Mill,Slag Grinding Mill,Gypsum Grinding Mill,Calcite Mill,VRM Cement Mill,Bentonite Grinding Mill,Dolomite Grinding Mill,Bauxite Grinding Mill and pneumatic conveying system equipment. Among them, the grinding system equipment includes HVM vertical mill, rotary air lock feeder, and pressure-resistant sealed metering feeder. The products of the pneumatic conveying system equipment include PCD type positive pressure dense phase pneumatic conveying bin-type pump, PJP type positive pressure dilute phase pneumatic conveying jet pump, and HL type high-efficiency pneumatic fluidized blanking and blockage removal device.

Since its establishment, the company has always adhered to the development concept of "Based on Industry and Equipped in the World", and is committed to providing domestic and foreign customers with a complete set of system solutions in the powder industry field covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting. Program. The company's core technology products have been widely used in the powder processing fields of building materials, metallurgy, chemical industry, heat, energy, electric power, lime kiln, pellets, mineral processing (including metal and non-metallic minerals), port warehousing and logistics and other industries.

The company has a professional technical team composed of high-quality talents such as experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. Practical experience, has rich engineering practice experience and theoretical basis. At the same time, the company has established technical cooperation and exchange relations with a number of key universities, absorbed the cutting-edge technologies in the powder industry at home and abroad, and closely followed the development trend of the powder industry, so as to provide customers with advanced and reliable powder equipment and various professional services. Technical Services.

Aiming at the two important links of powder preparation and powder transportation in the powder industry, the company has deeply studied the physical and chemical properties of various types of powder materials in different industries and fields after years of technical accumulation and a large number of engineering practices. On this basis, we have developed powder processing technology and complete sets of equipment that are highly targeted, safe, reliable, efficient and energy-saving.

We have a professional technical team composed of experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. All team members have more than ten years of experience in large state-owned design institutes in the industry Experience, has a wealth of engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involving grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.

We have undertaken a large number of domestic and foreign (currently the company exported to Indonesia, Vietnam, the Philippines, Pakistan, Egypt, Yemen, Saudi Arabia, Congo and other countries and regions in the world) the metallurgical industry limestone powder milling and pneumatic powder conveying projects and coal powder preparation And pneumatic conveying project, lime kiln industry pulverizing and pneumatic powder conveying project, coal powder preparation and pneumatic conveying project, cement industry grinding system and conveying system renovation project and other engineering design projects, the design of the engineering project equipment selection is reasonable, The design scheme is scientific and reasonable, concise, practical, and cost-effective, all of which have reached or exceeded the expected indicators, and have been highly recognized and praised by users. The project has won the company's reputation in the industry.

Our goal: to sell the best machines at the best prices with industry-leading customer service. We personally know each of our customers, always adhering to the development concept of "Focus On Powder,Equipping The World", we are committed to providing powder industry services covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting for customers around the world. A complete set of system solutions in the field.

For more detailed information on our Powder Industry Technology and Equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
