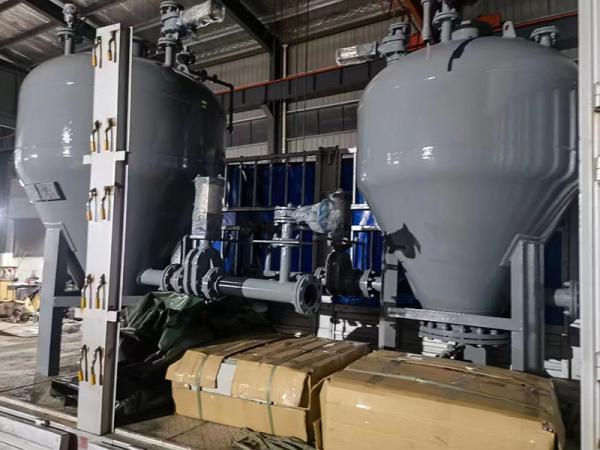

Large Delivery Volume Pneumatic Conveying Pump Dust Silo Pump

Description

【Product Main Features】

①Large conveying capacity: >300t/h;
②Long distance: >2000m;
③Low power consumption: <3.8kWh/t·km;
④Small wear: the life of the pipeline is more than 10 years;
⑤Low speed: initial speed 6～10m/s;
⑥ High mixing ratio: >30kg/kg;
⑦ Flexible process layout, no dust, high operation rate, lower investment and less maintenance cost than mechanical conveying

【Application Field】

PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical industry, mining, electric power, metallurgy and other industries. The conveying materials are: cement, raw meal, fly ash, slaked lime, dry-discharge carbide slag, slag powder, steel slag powder, coal powder, alumina powder, vitriol powder, phosphorus powder, pyrophyllite powder and organic silicon powder, etc.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

PCD type positive pressure dense phase pneumatic conveying warehouse pump After years of research, combined with rich practical experience, our company has developed pneumatic conveying equipment and process systems with independent intellectual property rights, and its main indicators have reached the international advanced level. The volume of the pump is determined according to the nature, particle size, conveying distance and conveying volume of the conveyed material, that is, a stand-alone design is carried out, so that the conveying energy consumption can be minimized on the premise of meeting the technological requirements.

At present, our longest horizontal conveying distance is 2200m and height is 30m; the maximum conveying capacity of a single unit is 300 t/h; the conveying energy consumption is less than 3.8kWh/t·km, the service life of the straight pipeline is more than 10 years, and the service life of the elbow is 3 years or more. According to the requirements of customers, according to the specifications and performance of powder materials, conveying distance, conveying volume and geographical conditions and other parameters provided by customers, we specifically formulate the best plan for engineering design and equipment selection, such as the calculation of air volume and the ratio of pipelines. , Receiving warehouse dust collection and after-sales plan, etc.

Hefei Hengcheng Industrial Equipment Technology Co., Ltd. (hereinafter referred to as Hengcheng) was established in 2008. The company is located in Hefei, Anhui, a famous science and education city in China. It is a national-level high-tech enterprise and technology-based enterprise specializing in powder industry technology and equipment R&D, manufacturing, sales and service. The company has passed the ISO9001 international quality system certification.

Our company's main products : Vertical Coal Mill,Limestone Vertical Mill,Vertical Raw Mill,Slag Grinding Mill,Gypsum Grinding Mill,Calcite Mill,VRM Cement Mill,Bentonite Grinding Mill,Dolomite Grinding Mill,Bauxite Grinding Mill and pneumatic conveying system equipment. Among them, the grinding system equipment includes HVM vertical mill, rotary air lock feeder, and pressure-resistant sealed metering feeder. The products of the pneumatic conveying system equipment include PCD type positive pressure dense phase pneumatic conveying bin-type pump, PJP type positive pressure dilute phase pneumatic conveying jet pump, and HL type high-efficiency pneumatic fluidized blanking and blockage removal device.

Since its establishment, the company has always adhered to the development concept of "Based on Industry and Equipped in the World", and is committed to providing domestic and foreign customers with a complete set of system solutions in the powder industry field covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting. Program. The company's core technology products have been widely used in the powder processing fields of building materials, metallurgy, chemical industry, heat, energy, electric power, lime kiln, pellets, mineral processing (including metal and non-metallic minerals), port warehousing and logistics and other industries.

The company has a professional technical team composed of high-quality talents such as experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. Practical experience, has rich engineering practice experience and theoretical basis. At the same time, the company has established technical cooperation and exchange relations with a number of key universities, absorbed the cutting-edge technologies in the powder industry at home and abroad, and closely followed the development trend of the powder industry, so as to provide customers with advanced and reliable powder equipment and various professional services. Technical Services.

Aiming at the two important links of powder preparation and powder transportation in the powder industry, the company has deeply studied the physical and chemical properties of various types of powder materials in different industries and fields after years of technical accumulation and a large number of engineering practices. On this basis, we have developed powder processing technology and complete sets of equipment that are highly targeted, safe, reliable, efficient and energy-saving.

We have a professional technical team composed of experts and scholars, senior engineers and postgraduates who have won the National Science and Technology Progress Award and participated in the formulation of relevant industry standards. All team members have more than ten years of experience in large state-owned design institutes in the industry Experience, has a wealth of engineering practice experience and theoretical basis. It can provide professional and systematic engineering design services for customers in various industries involving grinding system and pneumatic conveying system engineering, and provide a complete set of solutions in the field of powder engineering.

We have undertaken a large number of domestic and foreign (currently the company exported to Indonesia, Vietnam, the Philippines, Pakistan, Egypt, Yemen, Saudi Arabia, Congo and other countries and regions in the world) the metallurgical industry limestone powder milling and pneumatic powder conveying projects and coal powder preparation And pneumatic conveying project, lime kiln industry pulverizing and pneumatic powder conveying project, coal powder preparation and pneumatic conveying project, cement industry grinding system and conveying system renovation project and other engineering design projects, the design of the engineering project equipment selection is reasonable, The design scheme is scientific and reasonable, concise, practical, and cost-effective, all of which have reached or exceeded the expected indicators, and have been highly recognized and praised by users. The project has won the company's reputation in the industry.

Our goal: to sell the best machines at the best prices with industry-leading customer service. We personally know each of our customers, always adhering to the development concept of "Focus On Powder,Equipping The World", we are committed to providing powder industry services covering powder industry preparation, engineering design, engineering general contracting and technical services and consulting for customers around the world. A complete set of system solutions in the field.

For more detailed information on our Powder Industry Technology and Equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
