    High-Efficiency Pneumatic Conveying System Pneumatic Conveying Silo Pumps For Powder And Granular Materials

    Ask Lasest Price
    Brand Name : Hengcheng
    Model Number : PCD24/H PCD26/H PCD28/H PCD30/H
    Certification : ISO Patent Certificate High-Tech Product Certificate
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5 sets\month
    Delivery Time : 60 days
    • Product Details
    • Company Profile

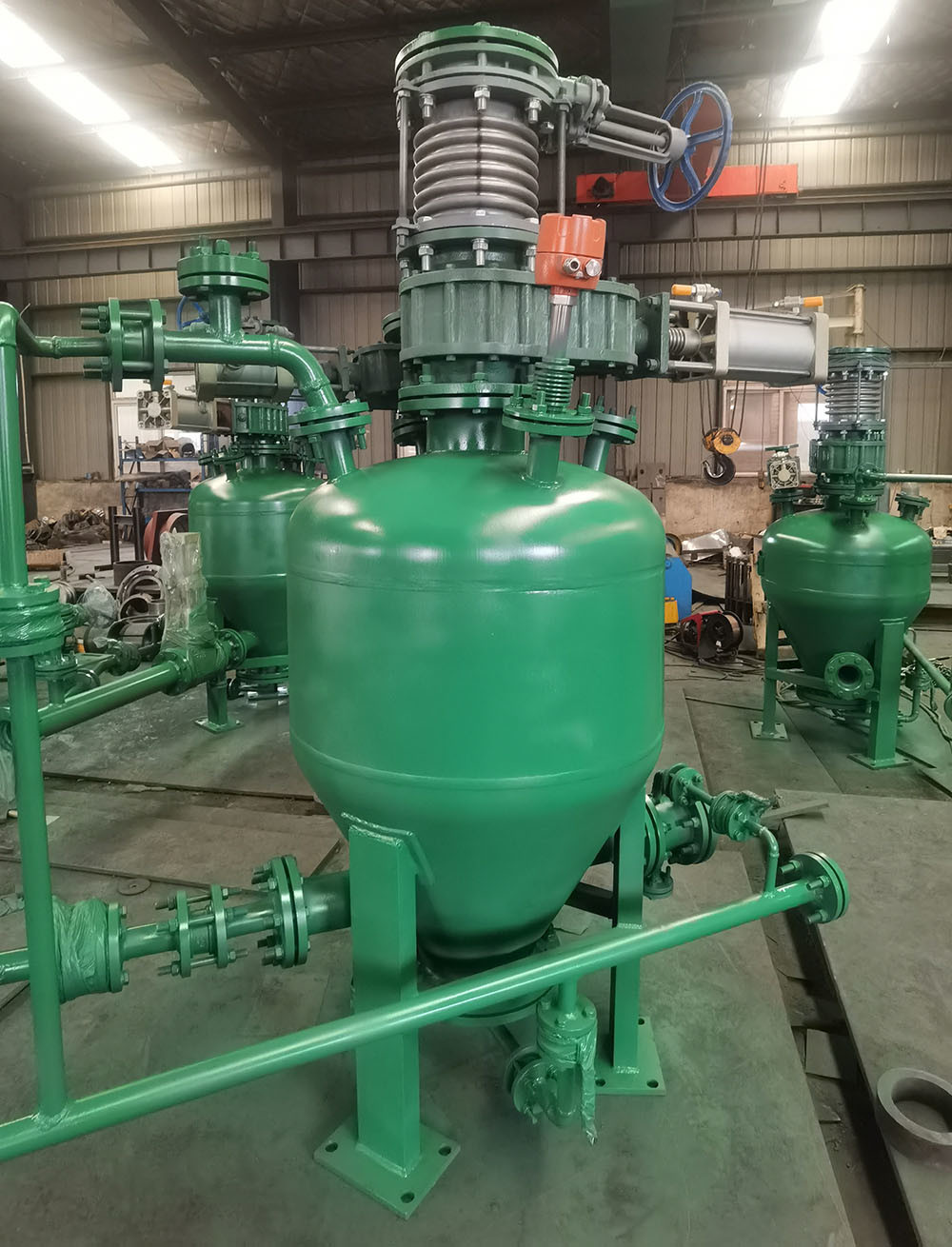

    High-Efficiency Pneumatic Conveying System Pneumatic Conveying Silo Pumps For Powder And Granular Materials

    High-Efficiency Pneumatic Conveying System Pneumatic Conveying Silo Pumps For Powder And Granular Materials

    1. Product Overview
    The PCD type positive pressure dense phase pneumatic conveying bin pump determines the pump capacity based on the properties, particle size, conveying distance, and conveying volume of the conveyed material, that is, it is designed as a single machine to minimize conveying energy consumption while meeting process requirements. Based on the specifications and performance of the powder materials provided by the customer, as well as parameters such as conveying distance, conveying capacity, and geographical conditions, we develop the best solution for pneumatic conveying, including calculation of air volume, pipeline ratio, dust collection and treatment in the receiving warehouse, and after-sales planning.
    2. Working Principle
    The pneumatic conveying silo pump operates based on the principle of positive - pressure pneumatic conveying. The working process can be divided into the following steps:​
    Filling Phase: First, the inlet valve and exhaust valve of the silo pump are opened. The pump is filled with materials under normal pressure until the level gauge indicates that the silo is full.​
    Pressurization Phase: After filling, the inlet valve and exhaust valve are closed, and then the high - pressure air valve is opened to pressurize the inside of the tank.​
    Conveying Phase: When the operating pressure is reached, the conveying air valve and discharge valve are opened. The pressurized air pushes the materials in the silo pump into the conveying pipeline, and the materials are transported to the designated location.​
    Emptying and Depressurization Phase: Once the conveying is completed, as indicated by the pressure switch, level gauge, or time relay, the high - pressure air valve and discharge valve are closed. All the compressed air is used to clean the conveying pipeline. At the same time, the exhaust valve is opened to reduce the pressure in the tank to normal pressure, completing one working cycle.

    High-Efficiency Pneumatic Conveying System Pneumatic Conveying Silo Pumps For Powder And Granular Materials
    Large Capacity Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density (t/)ModelPCD24/HPCD26/HPCD28/HPCD30/HConveying Distance
    Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
    Pulverized Coal0.5Delivery Volume (t/h)50~8060~9065~11080~13020020
    Fly Ash0.7575~12585~13095~160125~19020020
    Limestone Powder/Mineral Powder0.880~13090~140100~170130~20020020
    Cement/Raw Meal1100~150115~175130~215165~26020020


    Long-distance Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density (t/m3)ModelPCD24/LPCD26/LPCD28/LPCD30/LConveying Distance
    Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
    Pulverized Coal0.5Delivery Volume (t/h)20~4025~4530~5545~65100025
    Fly Ash0.7535~6045~6545~8065~95100025
    Limestone Powder/Mineral Powder0.840~6545~7050~8570~100100025
    Cement/Raw Meal150~8055~9065~11090~120100025

    Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

    Conveying MaterialBulk Density(t/)ModelPCD18/NPCD20/NPCD20/NReference Conveying Distance
    Specification5.0~6.77.0~10.010.0~15.0m³Level (m)Vertical (m)
    Pulverized Coal0.5Delivery Volume (t/h)12~2016~3225~5050030
    Fly Ash0.7518~3225~4835~7050
    Limestone Powder/Mineral Powder0.820~3526~5138~7550030
    Cement/Raw Meal1.024~4232~6548~9550030
    Silicon Powder1.228~5040~7555~11550030

    Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

    MaterialBulk Density(t/)ModelPCD08/MPCD10/MPCD12/MPCD14/MReference Conveying Distance
    Specification0.2~0.50.6~1.61.5~2.52.5~5.0Level (m)Vertical (m)
    Pulverized Coal0.5Delivery Volume (t/h)0.5~1.81.5~5.55.0~9.08.0~18.010020
    Fly Ash0.750.9~2.82.5~8.57.0~14.012.0~27.010020
    Limestone Powder/Mineral Powder0.81.0~3.03.0~9.08.0~15.012.0~28.010020
    Cement/Raw Meal1.01.2~3.53.5~11.510.0~18.016.0~36.010020
    Silicon Powder1.21.5~4.04.5~13.512.0~20.019.0~43.010020

    High-Efficiency Pneumatic Conveying System Pneumatic Conveying Silo Pumps For Powder And Granular MaterialsHigh-Efficiency Pneumatic Conveying System Pneumatic Conveying Silo Pumps For Powder And Granular Materials

    3. Product Features
    Efficient conveying capacity
    The conveying distance can reach over 1000 meters
    Conveying capacity range: 0.2-260 t/h
    Low energy consumption design, saving 30% energy compared to traditional transportation methods


    Excellent sealing performance
    Patent sealing technology ensures no leakage
    Made of special wear-resistant materials to extend service life
    Fully enclosed conveying to prevent dust pollution

    Intelligence control system
    PLC automatic control, easy to operate
    Fault self diagnosis function
    Can be connected to the factory DCS system

    Low maintenance design
    Modular structure, easy to maintain
    Key components are made of wear-resistant alloys
    Long maintenance cycle

    4. Application Fields​
    Power Plants: Widely used for the transportation of fly ash, ensuring the efficient operation of power generation systems and the proper disposal of by - products.​
    Cement Industry: Used for the transportation of cement, cement raw materials, and mineral powder, helping to improve the production efficiency and product quality of cement plants.​
    Chemical Industry: Suitable for transporting various chemical powders and granules, meeting the strict requirements of the chemical production process for material transportation.
    5. Customization and Service​
    Based on the specifications, performance, conveying distance, conveying capacity, and geographical conditions provided by the customer, develop the optimal engineering design and equipment selection plan, including calculation of air volume, pipeline ratio, dust collection and treatment in the receiving warehouse, and after-sales plan.
    In addition, we offer comprehensive after - sales service, including installation guidance, commissioning, operator training, and regular maintenance and repair services. Our goal is to ensure that your equipment operates smoothly and efficiently for a long time.​
    If you are interested in our pneumatic conveying silo pump or have any questions, please feel free to contact us. Our contact information is as follows:​
    Contact Number: +86 17730201127
    Email: margo@gmail.com
    Let us work together to find the best material transportation solution for you!
